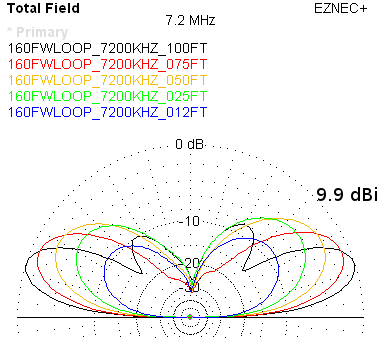

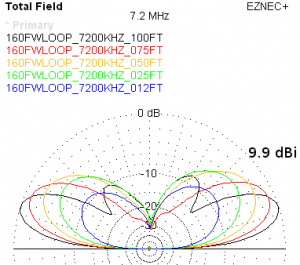

Elevation energy @ 7.2 MHz

This maximum energy occurs at an azimuth of about 35 degrees and has four main lobes in a clover leaf pattern. This is a discussion about NVIS so the DX angles are not shown. The point is little energy illuminates the zenith for NVIS use.
