A good reason for a hike

My son and I took to the Shenandoah mountains to climb the short trail to Hawksbill mountain… the highest spot in the national park.

Our goal was to activate the peak for the Summits on the Air amateur radio program.

Using very minimal gear, at least in item count, we successfully made twenty-three SSB contacts on three amateur radio bands: 40m, 20m and 10m.

I was quite pleased with the performance of an LNR Precision (formally PAR) antenna I simply tossed into the branches of a nearby tree.

The Setup

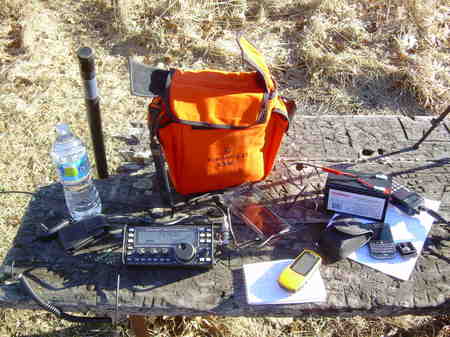

Here is the gear on the convenient picnic table…

View of gear

View of gear

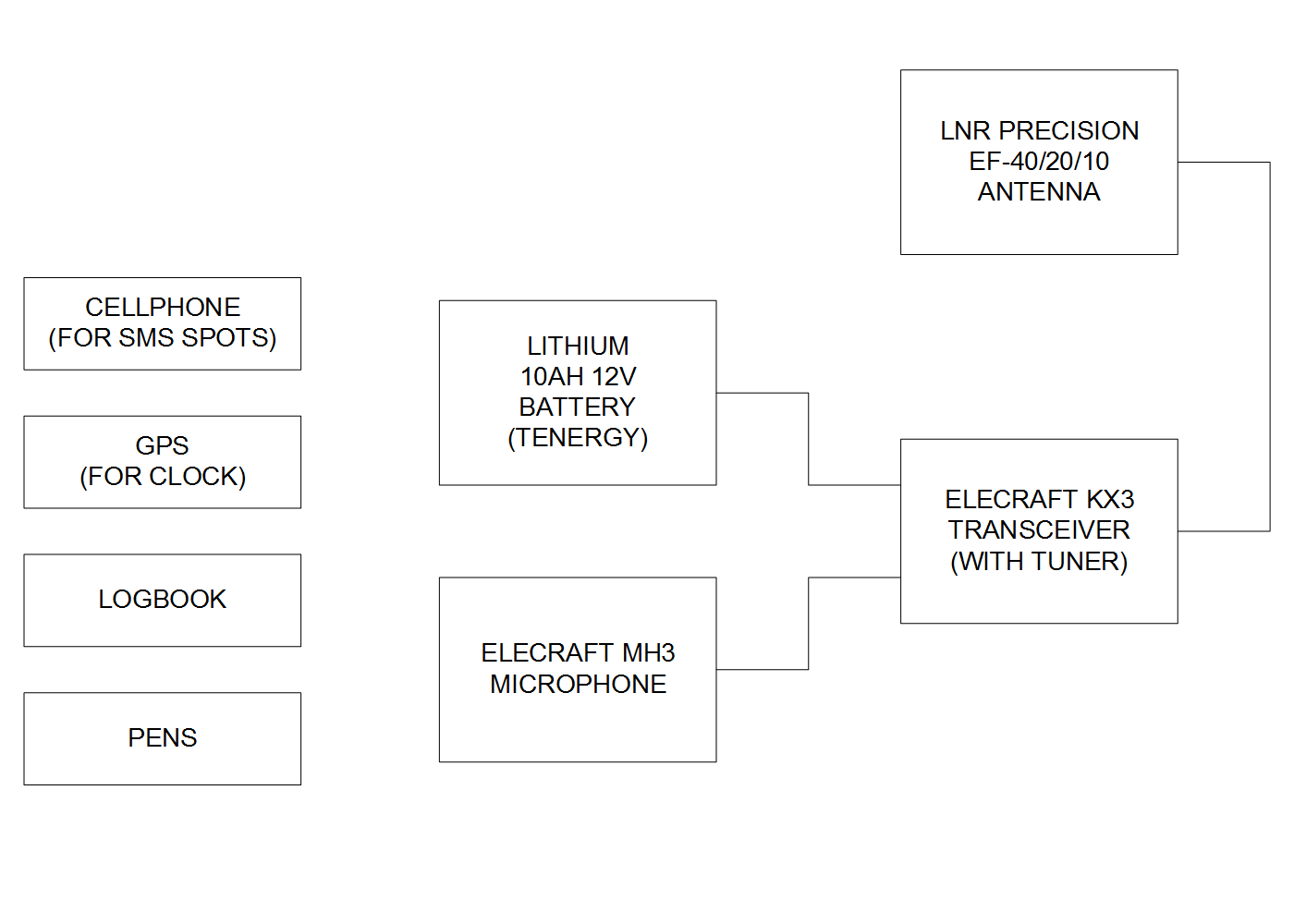

The following diagram shows this setup is much simpler than the above photo might suggest…

Diagram of gear

Diagram of gear

Battery

For those interested in that battery, here is an article about it.

Antenna

The antenna is the three band end fed make/model LNR Precision EF-10/20/40 reviewed elsewhere on this site including some test data.

I’m usually a purest with antennas, but wind chill mitigates lofty goals. While I did bring a portable pole, in the end I simply tossed the feed point of the antenna over a big branch and circle-whipped the rest of it into branches. Trees are awesome aren’t they.

Here are the results of this embarrassing, but quickly deployed three band antenna…

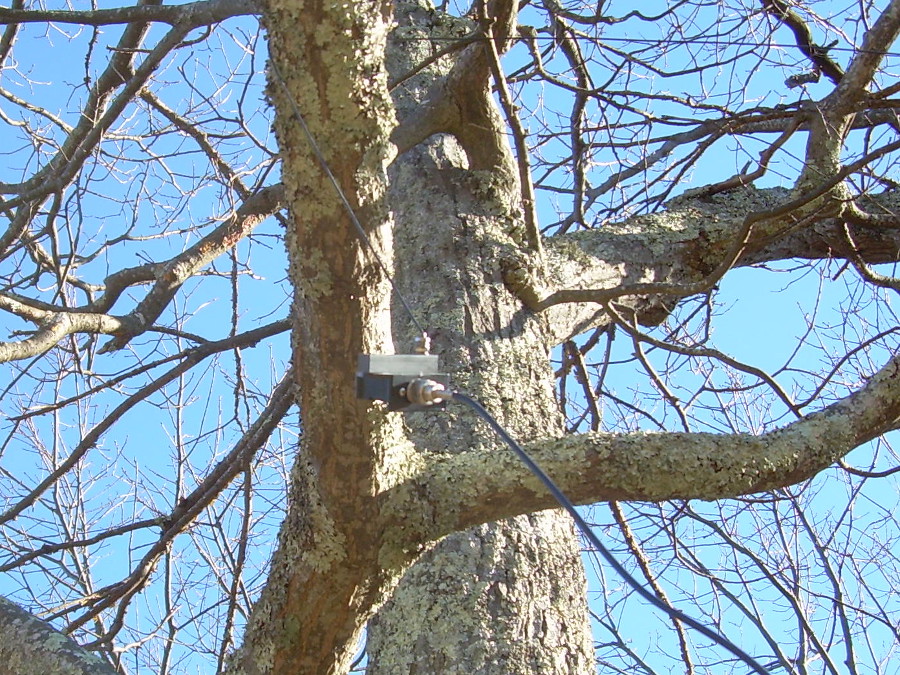

Feedpoint of antenna

Feedpoint of antenna

Note I’ve committed the most heinous of electromagnetic crimes by wrapping the high impedance end of an antenna aerial around a juicy dielectric. What would happen? The wind chill didn’t allow me to dwell on such things.

The rest of the aerial sat loosely in small limbs which I thought would not be much trouble.

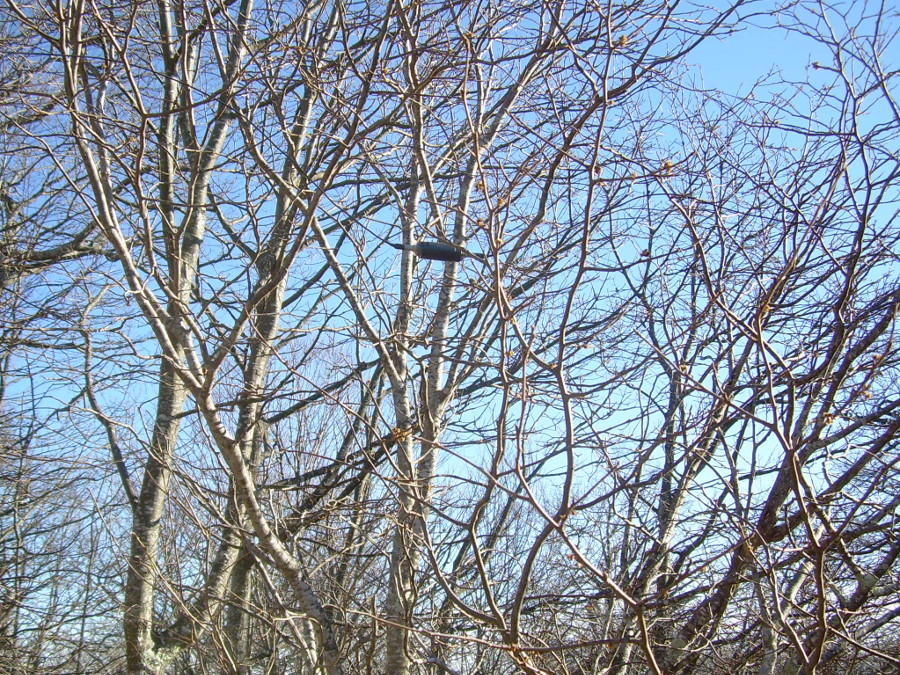

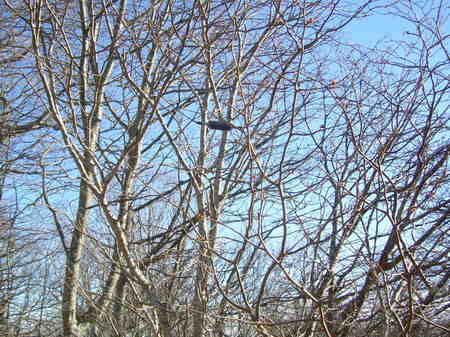

Here we see the coil draped about 7 feet above ground.

Coil of antenna

Coil of antenna

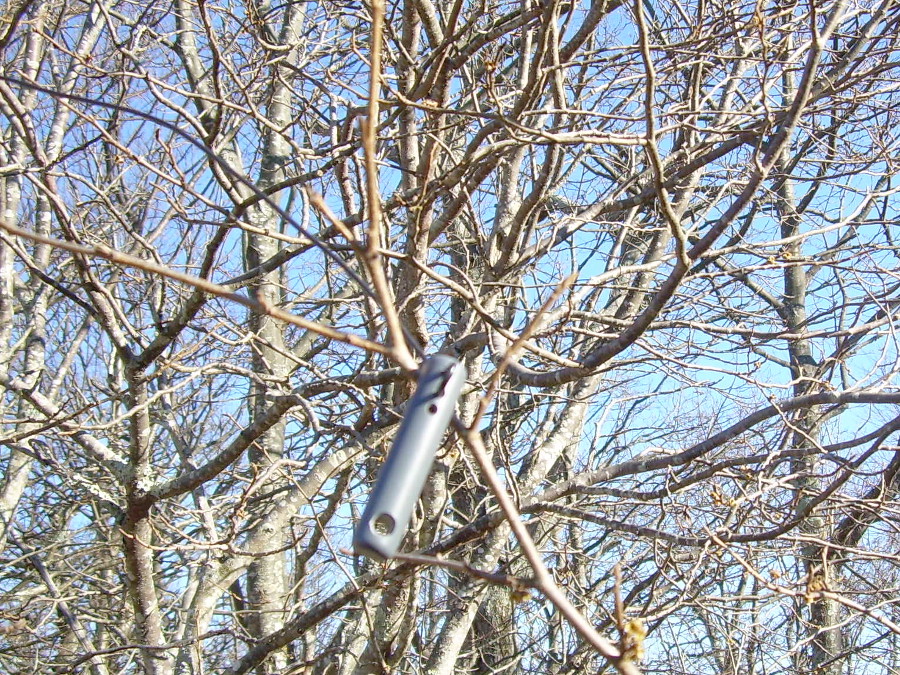

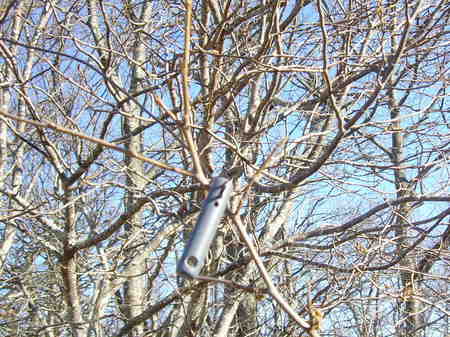

The insulator promptly “hooked” and secured the aerial in the trees.

End of antenna

End of antenna

All in all, the LNR wire went up in about two minutes resulting in a reasonably flat antenna about 7 to 10 feet above ground level.

Note, no extra strings or ropes are anywhere to be found… as I forgot them! Fortunately, this antenna nestled nicely into the low lying scrubby trees.

The SWR was under 3:1 always and often under 2:1. The antenna is a bit long on 40m (I never trimmed it like I should have after purchasing it – oops). Despite this, I used the KX3 tuner each time to trim things up and just not worry about it further.

Cell Phone Self Spots

The power of self spotting was evident the moment I managed to get an SMS text through to the gateway managed by the SOTA folks. Once you set up your cell number with Andy, you simply follow the directions here…

http://www.intermoose.com/SMSBOT-usage.txt

…and you have folks waiting to contact you in minutes. I am ecstatic how well this works.

Sky Shack

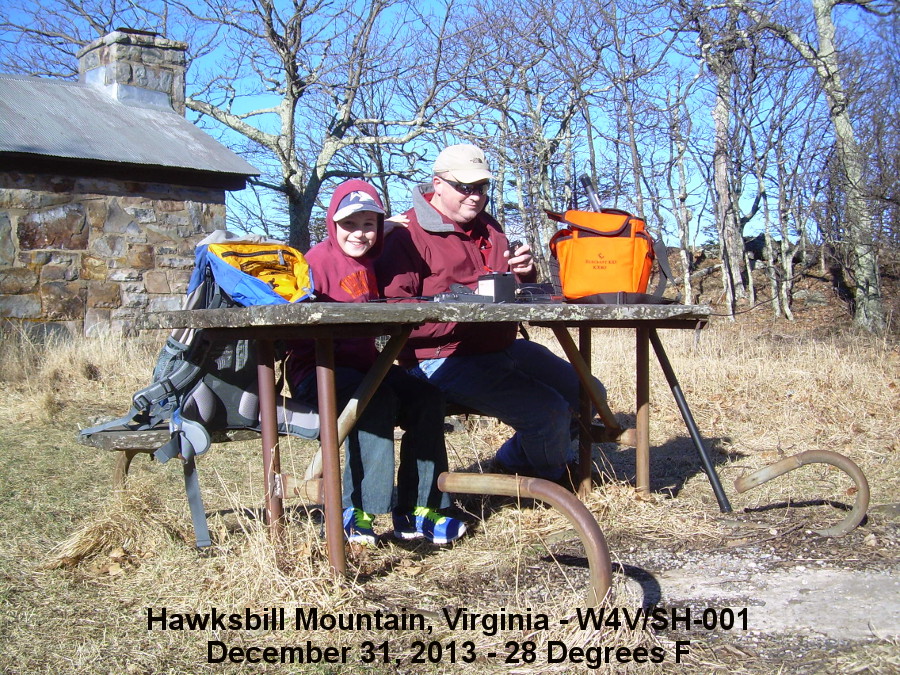

Here we are making a total 23 contacts with the first seven on 40m, then some on 20m and finally two contacts on 10m.

Operating Position

Operating Position

Conclusion

For what this was, I am happy with the outcome of this outing. This is my first HF activation of SOTA. The first activation on VHF was on Stony Man in November 2012. It was cold then as well.

For the most part I heard everyone better than they heard me and this makes sense. I’m sure the antenna deployment could be better, but the point to make here is it was “good enough” to seal the deal and make the required contacts before the wind picked up and chilled us even more.

Hurrah… On to the next SOTA outing.

About John Huggins

John is an electrical engineer working in astronomy and aerospace including 33 years in antenna/RF design with experience modeling, manufacturing and measuring past, present and new antenna concepts.
