When an N connector isn’t

This is an N connector… or is it?

Bulkhead N connector on commercial antenna.
Bulkhead N connector on commercial antenna.

Looks innocent enough right? It’s actually quite handsome on this plastic cap to serve as the feed point of a commercial antenna. The devil is in the details though as we attempt to attach a connector.

Let’s try two N male example connectors

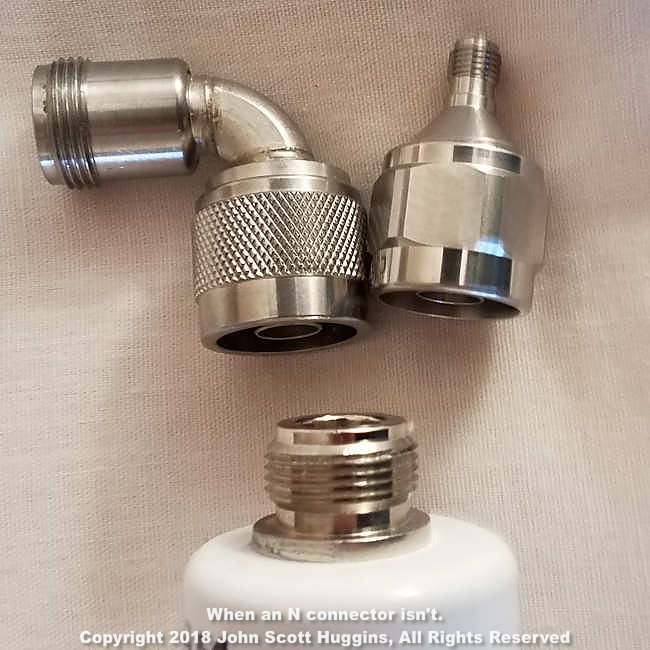

Two N adapters for test for fit.
Two N adapters to test for fit.

Pictured above are two N connector adapters chosen randomly from some container. Let’s try the SMA-N adapter first.

Some N connectors engage adequately

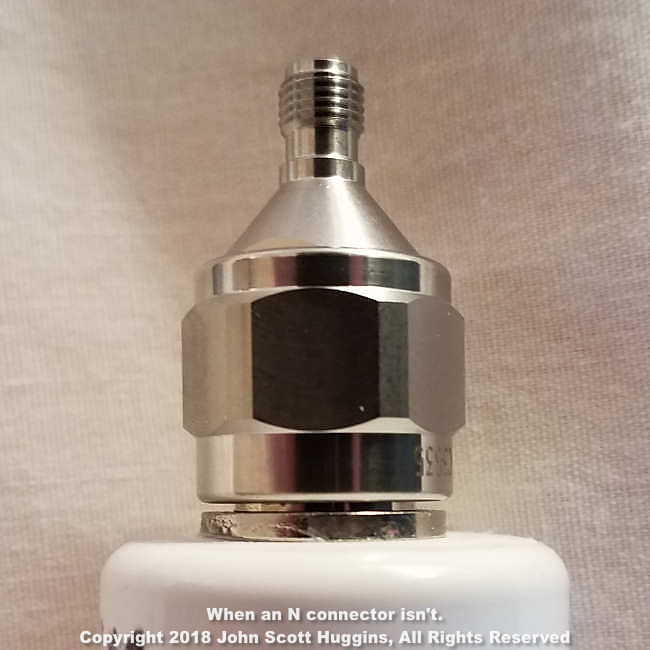

N to SMA doesn't bottom out on the antenna's N shoulder.
N to SMA not fully tight on the antenna’s N shoulder.

Let’s hand tighten it.

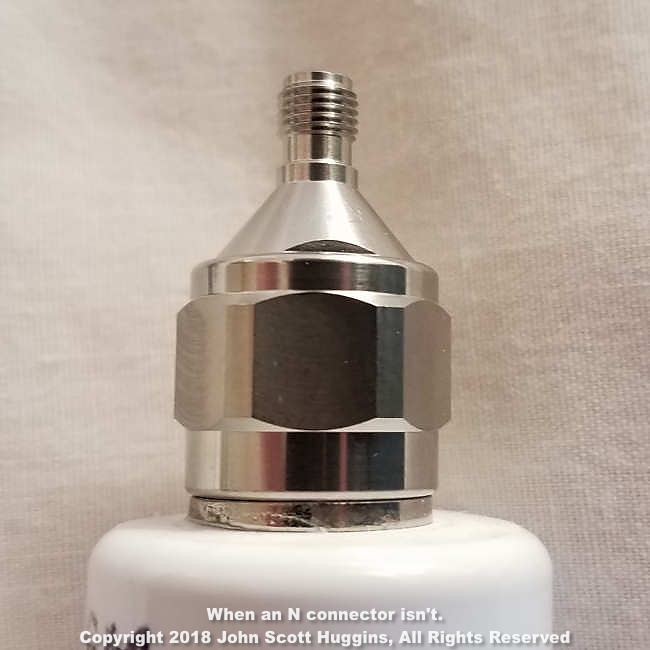

N to SMA adapter just barely seats in place, but does adequately mate the interior connector and seal.
N to SMA adapter just barely seats in place, but does adequately mate the interior connector and seal.

Hmmm, this particular adapter’s mating coupling nut bottoms out on the shoulder, but does engage the internal N connection and o-ring seal well enough to prevent the inner portion from easily spinning around.

Some N connectors don’t engage adequately

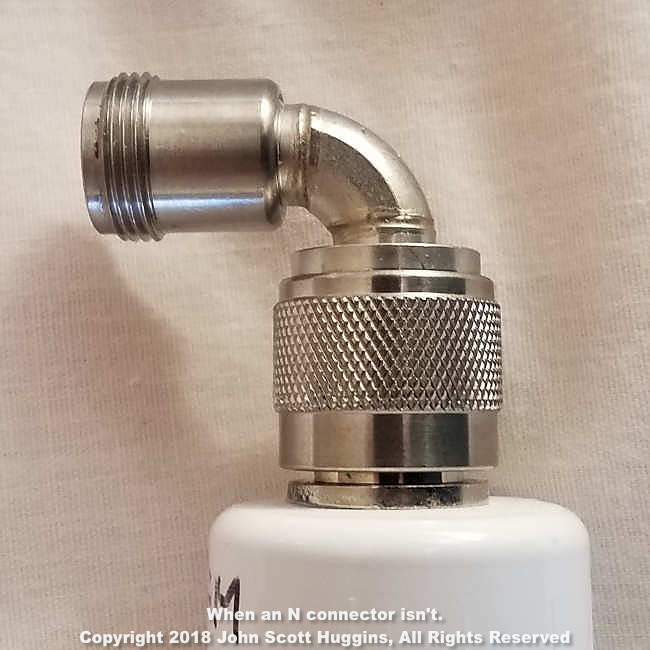

The N elbow before tightening down.
The N elbow before tightening down.

Let’s hand tighten it.

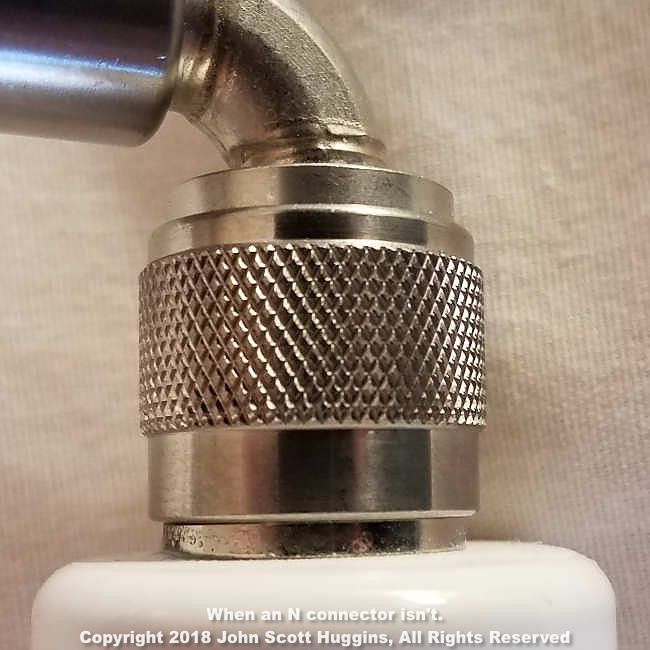

N elbow bottomed out on shoulder that would not happen if the antenna N female were built to specification.
N elbow bottomed out on shoulder.

This particular adapter’s mating coupling nut bottoms out on the shoulder, but does NOT engage the internal N connection and o-ring seal well enough to prevent the inner portion from spinning around with the slightest touch.

Loosey Goosey N connector engagement

The N elbow bottoms out on the antenna's N connector shoulder preventing a tight seal on the inner connection interface. The elbow spins freely despite connector tightness.
The N elbow bottoms out on the antenna’s N connector shoulder preventing a tight seal on the inner connection interface. The elbow spins freely despite connector tightness.

In the case of the elbow, the mating coupling nut bottoms out without providing adequate compression to the N connection interior. Thus the front face of the N bulkhead doesn’t compress against the elbow’s o-ring seal. The elbow spins freely. This is not likely what was meant by the designers of the N connector… and no… the N connector was never meant to be a rotational coupling system.

So what’s wrong with this N bulkhead connector?

Either the mating coupling nut is too long or the N bulkhead distance between the front face and shoulder is too short. Let’s consult MIL-STD-348 from the annals of time for guidance on what the N female is suppose to look like.

MIL-STD-348 N connector
MIL-STD-348 concerning the N female connector [1]
Dimension G denotes the “Clearance for mating connector coupling nut” as Note 2 highlights. Consulting the table on the right, dimension G has only a minimum length specification of 422 mils or 10.72 mm. For a connector to mate per the designer’s intent, all the details in this specification are equally important, but having the thing fully mate ranks high for this article’s particular focus.

Let’s measure the N bulkhead’s dimension G

Measurement of connector face to connector shoulder is 10 mm... a bit to short to comply with the N specification of 10.7 mm "minimum."
Measurement of connector face to connector shoulder is 10 mm… a bit too short to comply with the N specification of 10.72 mm “minimum.”

Well well… one centimeter exactly. Looks like the maker of this particular N bulkhead rounded 10.72 mm down to an even 10. Looks like they goofed big time. Rounding up to 11 mm would be perfectly fine. Or perhaps the designer paid attention to dimension J+H+K in the specification’s dimensions without noticing G. Hard to say.

Let’s examine what 10.72 looks like on the above connector…

Gauge set to about 10.7 mm to show the bulkhead N female connectors clearance for a mating connector is close, but not quite long enough to ensure a full mate of the inner connector mechanics.
Gauge set to about 10.7 mm to show the bulkhead N female connectors clearance for a mating connector is close, but not quite long enough to ensure a full mate of the inner connector mechanics.

This is a sewing tool, but a fisherman’s ruler it’s not so we can have some faith in what we see above. That little gap circled in red highlights what a difference less than one millimeter can make.

Pedigrees matter

Unlike the long extinct governing standard for the UHF connector, the N is one of many post WWII connectors fully described in active specifications, notably MIL-STD-348. When we opt for an N connector on an antenna product like above, we expect a certain quality about it. Lucky me I guess for purchasing this antenna to stumble onto such a problem in the supply chain.

Not the antenna maker’s fault

It’s important to realize this deviation from the N connector is NOT the fault of the antenna manufacturer. They have the same expectation of N connector pedigree as any connector purchaser. If they buy an N bulkhead for their product, they should receive one that will properly mate with any other N connector.

Blame shifting

It’s interesting to note the reaction of some when they realize their product has a bogus part in its design. This is the reaction I received from one such manufacturer.

I know you expect Mil Spec quality or even Space Spec quality, but we are not that.

Allow me to ask the obvious question. If you are not using the interface specification that makes N connectors mate with each other, what are you really trying to say here? Allow me to translate the above to the, I’m sure, unintended meaning…

I know you expect our N connector to mate with other N connectors, but what’s a mm between friends.

It’s everything man… everything. Are you really telling me how tightly a connector mates isn’t important? This connector flaw isn’t your fault, but now that you know, it is on you to fix the parts supply problem with an N bulkhead that meets the 10.72 mm coupling nut clearance along with everything else the specification mandates.

Dé·jà vu

Being in the engineering biz for a few decades brings back a recurring theme during many a requirements management meeting. One superb example is projects for items powered by vehicular power systems. My instant reaction is to apply the various notions detailed in MIL-STD-1275 – CHARACTERISTICS OF 28 VOLT DC ELECTRICAL SYSTEMS IN MILITARY VEHICLES. I’d receive instant pushback with the typical…

But John, we aren’t designing military spec. equipment for this particular project.

Whereupon I respond…

You don’t understand. 1275 isn’t teaching us how to design mil-only systems, it is teaching us how vehicular power systems actually are with regards to surges, spikes, drop outs, etc. You’re learning how to make our product work on any and all vehicle power systems, not just military vehicles. Ignore at your peril.

We had one supplier of a vehicle computer system proudly proclaim compliance with the typical 24 volt vehicle power system with his stated upper limit of 28.5 volts. Never mind the charging voltage exceeds this and spikes come in a 50+. Fail. I go into this topic more here.

The point of all this is standards are there to make things work together, not to make our lives difficult. Ignore at your peril.

Anyway, enough of that… back to connectors…

Amphenol – a good example

Amphenol is my goto supplier for most of my connector needs. I seriously doubt a vendor of such quality will ever manufacture N connector components that violate MIL-STD-348. Let’s look at one flange bulkhead example and check their math.

Amphenol 082-97-rfx
Amphenol 082-97-rfx [2]
Does that maximum panel thickness force compliance with the 10.72 mm specification? Lets subtract it from the 16.7 mm mounting length – 16.7 less 4.7 = 12 mm. Yes with a millimeter to spare. Back mount this on a panel 3/16ths or less thickness and you can be sure everything compliant with MIL-STD-348 will fully and securely mate. Try it on a thicker panel and, well, you are now the one violating the N’s design specification. How we use connectors matters as much as how they are made.

Another example

A member of my local ARC shared his frustration with the N bulkhead connector on his Times Technology T101 antenna analyzer he alleges has a “G” dimension of 10.1 mm… well short of “N” compliant. He’s not sure if this is causing his misconnection issues, but the alleged short “G” length makes one wonder what else might be out of spec.

Summary

Standards matter… A LOT! Breaking an interface standard is, perhaps, the most obvious and easy to spot issue, but once broken one has to wonder if the makers ignore other dimensional constraints. Blatant ignorance thus confirmed, one next must assess if the performance dictates spelled out in the related performance (MIL-PRF-xyz) standards referenced by MIL-STD-348 may have been leisurely followed.

How the N connectors we purchase are manufactured and how we assemble them into our products (like the panel example above) must all comply with the dictates of MIL-STD-348 or equiv. Scrimping on any parameter deviates from the designers’ intent. Is a bulkhead connector with N features and only a 10 mm coupling nut clearance an N connector? No it isn’t by definition and, by my example above, demonstration.

Conclusion

Unfortunately we live in a world where charlatans exist in our supply chain. I don’t believe the designer of the errant N bulkhead meant any harm by rounding 10.73 mm down to 10 mm, or ignoring dimension G altogether, but that small error makes all the difference in actual use. Let’s not sugarcoat this too much… it is a design screwup. For the moment, there are just two known victims: the maker of the above commercial antenna using the errant N connector and me as purchaser of the product. Hopefully readers of this article won’t be the next victim.

Vigilance is key. Buyer beware. I stick with Amphenol products purchased from listed Amphenol vendors and worry not.

References

  1. RADIO FREQUENCY CONNECTOR INTERFACES FOR MIL-DTL-3643, MIL-DTL-3650, MIL-DTL-3655, MIL-DTL-25516, MIL-PRF-31031, MIL-PRF-39012, MIL-PRF-49142, MIL-PRF-55339, MIL-DTL-83517 (B with change 3 ed.). US DOD. 2017-01-22.
  2. Amphenol N-Type Straight Solder Jack, Solder Cup, Panel Mount, 50 Ohm Part Number 082-97-RFX.
